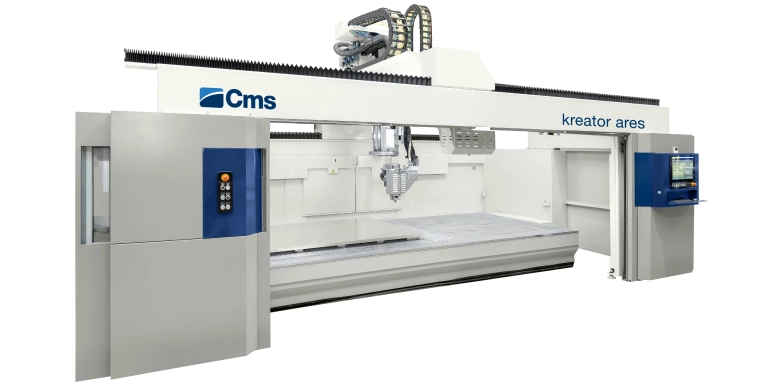

From synergy with Germany's renowned Fraunhofer Institut comes Kreator, a Cnc machine for Additive Manufacturing designed to improve the competitiveness of composites machining and other sectors.
A Hybrid Solution combining CMS's vertical milling system with a 3D printing device.
The material used is a thermoplastic polymer in granulated form, reinforced with discontinuous carbon or glass fibers. The molten polymer, coming out of the extruder, is deposited in layers that plasticize to form a one-piece.

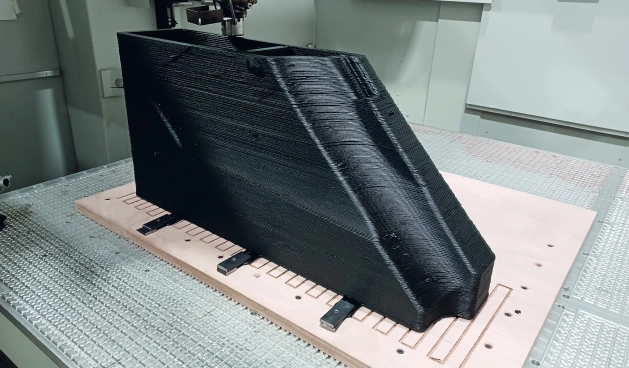

Kreator is the hybrid system for Additive Manufacturing and Milling designed for machining composite materials that integrates a machine tool to a large-format 3D printer.
Highly innovative technology that enables precise and durable work, while also ensuring sharp savings in cost and production time.
Kreator is a Cnc machine using Screw Extrusion Additive Manufacturing technology. The process prints vertically and involves a single-life extruder positioned on the machine tool axes as well as the use of a thermoplastic polymer granule, melted and later deposited, layer by layer, to create a single finished part.
High-speed 3D printing in the machining center enables a significant reduction in material consumption, up to 5 times lower.
The system provides a strong reduction in material costs compared to a Cnc center with traditional subtractive technologies.
3D printing of multiple parts or sections on the same worktable enables a net reduction in production time as well.
Kreator is equipped with a device for automatic changeover from cutting tools to the extruder and vice versa.
The system is designed for large-format 3D printing and always ensures performance with high standards.
The machine ensures a printing speed of up to 16M/MIN, for fast but still precise production.
CMS provides original spare parts and accessories that are constantly in stock, or readily available through a network of certified suppliers.
Servomotors, gearboxes, drives, electrospindles, new or reconditioned, useful to respond promptly to any problems.
All spare parts are covered by manufacturer's warranty, and an experienced staff assists the customer during the selection process in order to obtain the most suitable component for the specific machining center.
In addition, the loan-to-use service of some components avoids machine downtime during maintenance, allowing agreed production deadlines to be met.
After-sales support is a service of excellence provided by CMS, also available on-site and usable through the support of a team of qualified technicians equipped with the best technologies and software.
CMS performs scheduled and extraordinary maintenance for breakages, collisions, replacement of worn elements and programming. In addition, CMS technicians are always available for conducting specific training courses and CAD-CAM use, not to mention geometric checks with laser systems.
On-time performance and services that significantly reduce machine downtime, enabling continuity of production and high-precision finished products.
